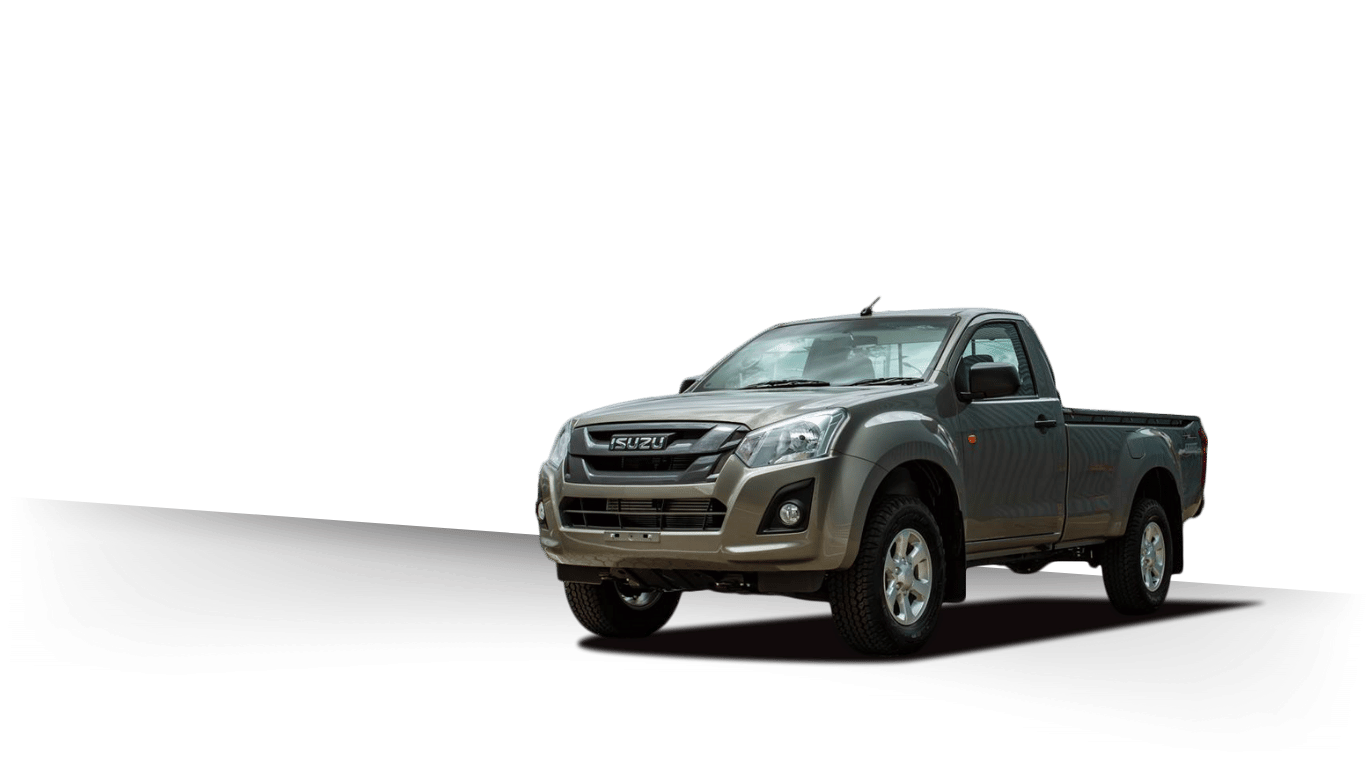

The Isuzu D-Max TFS86 Single Cab 4x4 pickup offers flexibility, power and strength to make it unmatched for the different missions of our customers. Agility and tight turning circles make it perfect truck for city centre jobs. It is stable and secure for inter city transport at commercial speeds on highways and it is ready to take on demanding roads with it's robust structure.
Submit your request on our easy form and a member of ACMG Sales Support team will then be in touch to confirm your details and ensure everything is processed quickly and correctly for your 4x4 Isuzu D-Max Single Cab pickup.
We work with all the major banks and ensure your finance application is seamless with guidance to provide the correct supporting documents ensuring fast turn arounds getting your Isuzu D-Max TFS86 4x4 Single Cab pickup on the road.
PICKUP RANGE - SINGLE CAB 4WD
Isuzu D-Max TFS86 4x4 Specifications
4x4
Drive Configuration
Single Cab
TFS86 BASE HR (A/C, Air Bags, ABS)
Seats Driver and 2 Passengers
100 (134) @ 3,600
Max Output kW (hp) @ rpm
+ Expand / Collapse Selection
Engine model
4JK1-TC HO
Emission
Euro IV
Type
Diesel 4 Cylinder, Common Rail Direct Injection, Turbocharged with Intercooler
Displacement (cc)
2499
Power kW (hp) @ rpm
100(134) @ 3,600
Torque Nm @ rpm
320 @ 1,800-2,800
Compression Ratio
18.1:1
Bore x Stroke
95.4 x 87.4
No. of Valves
16
Transmission
5-Speed Manual
4WD Rotary Switch Control - 2 Speed Transfer Case as Standard, Low Range Ratio 2.482
Front Differential
Shift On The Fly Standard, Axle Ratio Final Drive 4.1
Rear Differential
Limited Slip Differentoal (LSD) as Standard, Axle Ratio Final Drive 4.1
Fuel Tank Capacity (litres)
76
Suspension (Front and Rear)
Front: Highride Coil Spring. Rear: Leaf Spring Overslung. Shock Absorbers: Twin-tube Gas Pressurised (Heavy Duty).
Safety Guards
Skid Plate Guard, Engine Sump Guard, Fuel Tank Guard, Transfer Case Guard (N/A on 4x2)
Tyre Size
245/70 R16 Tubeless All Terrain
Rim Size
7.0J-33x16” Alloy (Spare is Steel)
Ground Clearance (mm)
224 (Wading depth 600)
Brakes
Front: Disc Brakes. Rear: Drum.
Steering
Power Assisted
Speed Limited
80 km/h
Turning Circle, Curb to Curb (m)
12.8
Load Box Features
4 Tie-down Brackets in Load Box for Load Restraint, 12 Rope Hooks on Load Box (Side and Rear), Cab Protector - Black
Fleet Management System
FMS System Equipped
Gross Vehicle Weights: GVW (Kgs)
2950
Tare Mass (Kg)
1820
Payload (Kg)
1071
Gross Combination Mass (Kgs)
4950
Towing Capacity (Kgs)
Unbraked Trailer: 750
Braked Trailer: 2100
Load Box (mm)
Length 2318, Width 1534, Depth 440
Safety Features
Side Impact Protection Bars, 3-Point Inertia Seatbelts, Height Adjustable (x2), 2-Point Front Centre Seat Lap Belt, Seatbelt Reminder, Collapsible Steering Column.
Extras: Anti-Lock Brakes (ABS), Electronic Brake-Force Distribution (EBD), Brake Assist System (BAS), Seat Belt Pre-tensioners, Driver and Front Passenger Airbags
Security Features
Transponder Immobiliser System
Interior and Exterior Lighting
Interior Courtesy Lights, Front Fog Lights, Halogen Multi-Reflector Headlights, Headlights “on” warning buzzer, Side Indicator Position (Doors), Rear Tail Lights - Combination Bulb, High Mounted Centre Stop Light
Exterior Features
Radiator Grille Colour in Material Grey, Front Bumper in Body Colour, Rear Bumper in Material Grey, Exterior Door Handle Colour in Material Black, Exterior Mirror Colour in Material Black, Manual Folding Exterior Mirrors, Mudflaps
Interior Features
Standard Gear Knob Trim, Split Bench Front Seats Configuration, Seat Trim in Canvas, Floor Trim Vinyl, Driver Footrest, Manual Air Conditioner, 12-V Auxiliary Power Supply, Door Trim with Storage Pockets and Integrated Cup Holders, Remote Fuel Flap, Fixed Rear Window, with no Defogger, Manual Windows
Infotainment Features
Radio Tuner, Front-Loading CD Player, MP3 Functionality and Bluetooth Audio Streaming with Integrated Mobile Hands-Free. Audio Input Terminal: Auxiliary, USB with 2 Speakers.
Why Choose the Isuzu D-Max TFS86 4x4?
- Off-Road Capability: Advanced 4x4 system for handling rugged terrains.
- High Performance: Powerful engine and robust suspension for demanding tasks.
- Versatile Applications: From agriculture to adventure, it’s built for tough jobs.
- Driver Comfort: Ergonomic cabin design and modern interior features.
The Isuzu D-Max TFS86 4x4 Single Cab is the go-anywhere, do-anything pickup for those who need reliability in harsh conditions. Whether for farming, construction, or off-road excursions, it delivers where other pickups fall short.
Isuzu D-Max TFS86 1t Payload
Sector Solutions
Agriculture & Farm Operations
- Ideal for transporting farm produce, equipment, and supplies through rough and muddy farm roads.
Construction & Site Transport
- Perfect for moving tools and construction materials to remote or rugged sites.
Adventure & Off-Road Lifestyle
- Built for exploring Kenya’s natural landscapes, from the Aberdare Ranges to Samburu’s rugged terrains.
Wildlife & Park Operations
- Suitable for game reserves and wildlife parks, ensuring efficient transport of equipment and personnel.
Command Centre
- Radio Tuner, Front-Loading CD Player, MP3 Functionality, USB, Auxiliary Input, Bluetooth Audio Streaming with Integrated Mobile Hands-Free for the perfect drive.
The Hi-Ride
- With an impressive 224mm ground clearance, the Isuzu D-Max TFS86 delivers a smooth, comfortable driving experience on all roads with reduced noise and vibration levels thanks to added insulation and improved door seals.
Nunua Isuzu D-Max yako kwenye Fedha - tunaweza kukusaidia!
95% Financing Offer
Grow Your Business with Isuzu
Available on all Isuzu Trucks, Isuzu Buses, Isuzu Pickups and Isuzu SUVs.
- Up to 95% Financing
- Up to Ksh 1,000,000 Million working capital
- Up to 72 Months repayment period
- 1-1.5% Appraisal Fee
- Up to 60 Days Repayment Holiday
Technical Highlights
Take on any terrain with the Isuzu DMAX TFS86 4x4 SC. Visit Africa Commercial Motor Group (ACMG) to explore financing options, customize your pickup, and schedule a test drive today.
Engine Performance
- Powered by the 4JK1-TC HO diesel engine with 134 hp @ 3,600 rpm and 320 Nm torque.
- Euro IV compliant for eco-friendly and efficient operations.
- Drivetrain: 4x4 with shift-on-the-fly capability.
Payload and Dimensions
- Payload Capacity: Up to 1 ton
- Cargo Bed Dimensions: Spacious and durable bed for heavy-duty tasks
Fuel Efficiency
- Renowned for low fuel consumption, making it economical for long-distance and daily operations.
Safety and Comfort
- Air conditioning and ergonomic seating
- Anti-lock Braking System (ABS), Electronic Brake-Force Distribution (EBD), Brake Assist System (BAS)
- Driver and passenger airbags
