The Isuzu FVZ34N offers flexibility, power and strength to make it unmatched for the different missions of our customers. Agility and tight turning circles make it perfect truck for city centre jobs. It is stable and secure for inter city transport at commercial speeds on highways and it is ready to take on demanding roads with it's robust structure.
Submit your request on our easy form and a member of ACMG Sales Support team will then be in touch to confirm your details and ensure everything is processed quickly and correctly for your high performance Isuzu FVZ34N 26-ton heavy-duty 6x4 tipper.
We work with all the major banks and ensure your finance application is seamless with guidance to provide the correct supporting documents ensuring fast turn arounds getting your Isuzu FVZ34N heavy-duty tipper on the road.
F-SERIES HEAVY-DUTY TRUCK
Isuzu FVZ34N 6x4 Tipper Specifications
6x4
Drive Configuration
26,000
Gross Vehicle Weights (GVW) (KG)
206 (280) @ 2,400
Max Output kW (hp) @ rpm
+ Expand / Collapse Selection
Engine model
6HK1-TCS
Emission
Euro IV
Type
Diesel 6 cylinder , Common Rail Turbocharged with Intercooler
Displacement (cc)
7790
Power kW (hp) @ rpm
206(280) @ 2,400
Torque Kgm (Nm) @ rpm
90 (882) @ 1,450
Pre-Air Cleaner & High Air Intake Pipe
Standard Equipment
Fuel Water Sedimentors
Standard Equipment
Heavy Duty Radiator
Standard Equipment
Transmission
9-speed
Final Drive Ratio (:1)
7.167
Clutch
Type: Dry Single Plate
Operation: Hydraulic Control, Air Assist
Clutch Diameter (mm/inch)
381/15’’
Fuel Tank Capacity (litres)
370
Suspension
Front: Multi Leaf Spring Shock Absorbers - Double Acting. Rear: Multi Leaf Spring with Helper Spring
Tyre Size
12.00R22.5 Tubeless
Rim Size
8.25 x 22.5
Brakes
System: Full Air Dual Circuit, with Air Dryer and Auto Brake Lining Adjustment. Air Dryer: Equipped. Front & Rear: Drum. Parking Brake: Wheel Parking. Auxiliary: Exhaust Brake
Steering
Power Assisted
Speed Limited
80 km/h
Cab
Tilt Cabin Construction. Sleeper Cab. Laminated Curved Windshield. 3 Point x 2 For Driver & Assistant, 2 Point x 1 For Center Seat. AM/FM Radio with USB Port. Equipped with Manual Levelling Headlamp Switch, Cab Tilt Switch and Warning Light.
Fleet Management System
FMS System Equipped
Gross Vehicle Weights: GVW (Kgs)
26000
Front Axle Weight (Kg)
3045
Gross Allowable Weight (Kg) 7500
Rear Axle Weight (Kg)
3965
Gross Allowable Weight (Kg) 25000
Cab Chassis Mass (Kgs)
7010
Gradeabilty %
39
Why Choose the Isuzu FVZ34N 6x4 Tipper?
- Tipper Functionality: Efficiently unloads bulk materials for construction and quarrying.
- High Payload Capacity: Handles up to 26 tons with ease.
- Rugged Build: Designed to withstand harsh working conditions.
- Reliability: Ensures consistent performance with minimal downtime.
The Isuzu FVZ34N 6x4 Tipper Chassis is a powerhouse for businesses in construction and quarrying. Its high capacity, durability, and efficiency make it a valuable addition to any heavy-duty fleet.
Isuzu FVZ34N 26t GVW
Sector Solutions

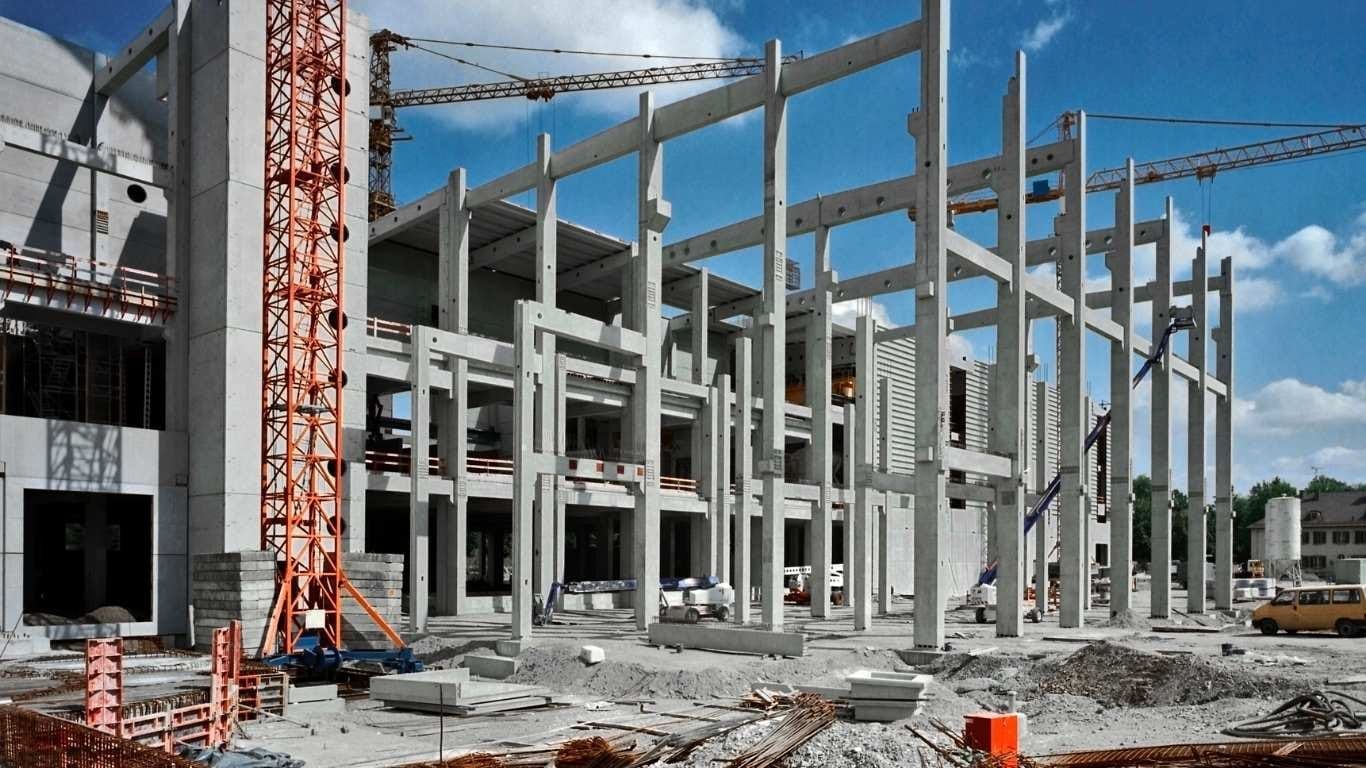

Construction & Infrastructure
- Ideal for transporting construction materials such as sand, stone, and debris to and from sites.

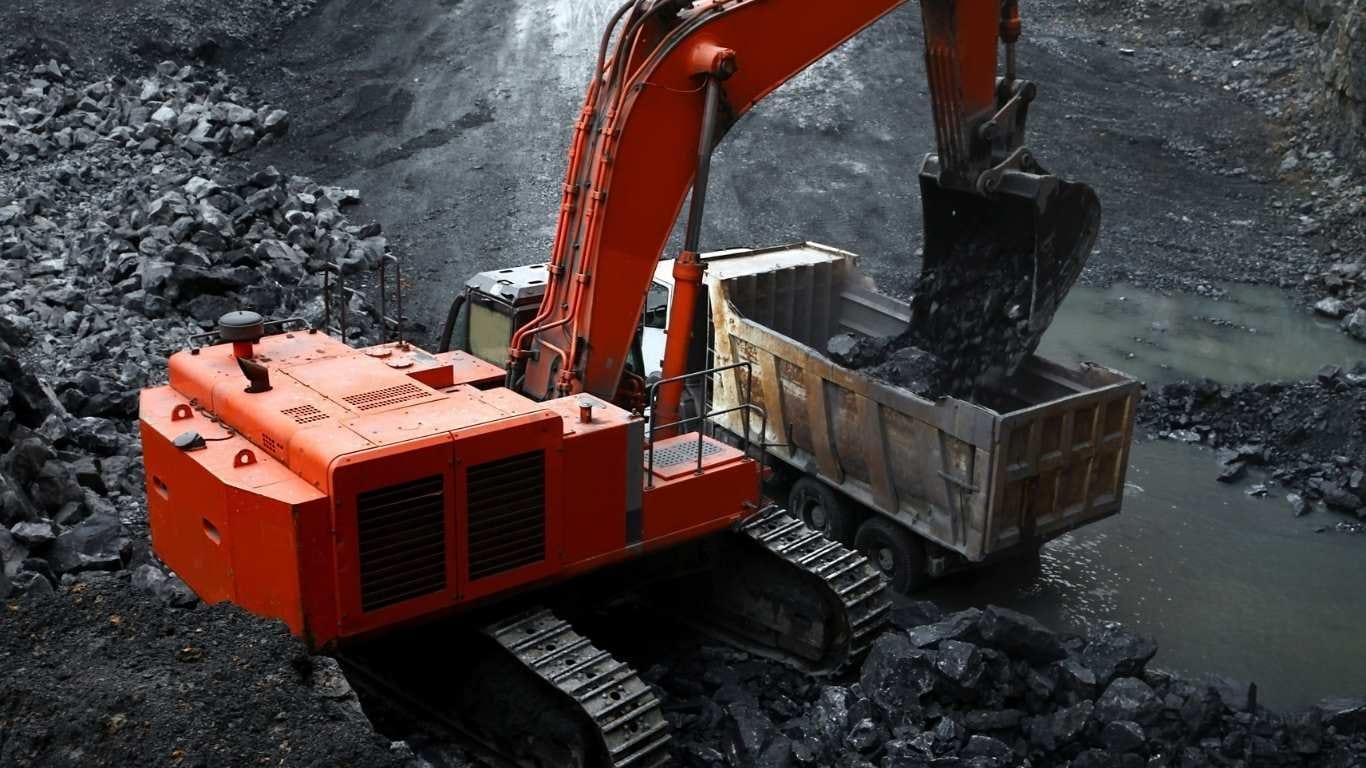

Quarry and Mining Operations
- Built to handle tough conditions, making it perfect for hauling gravel, rocks, and other materials from quarries and mines.

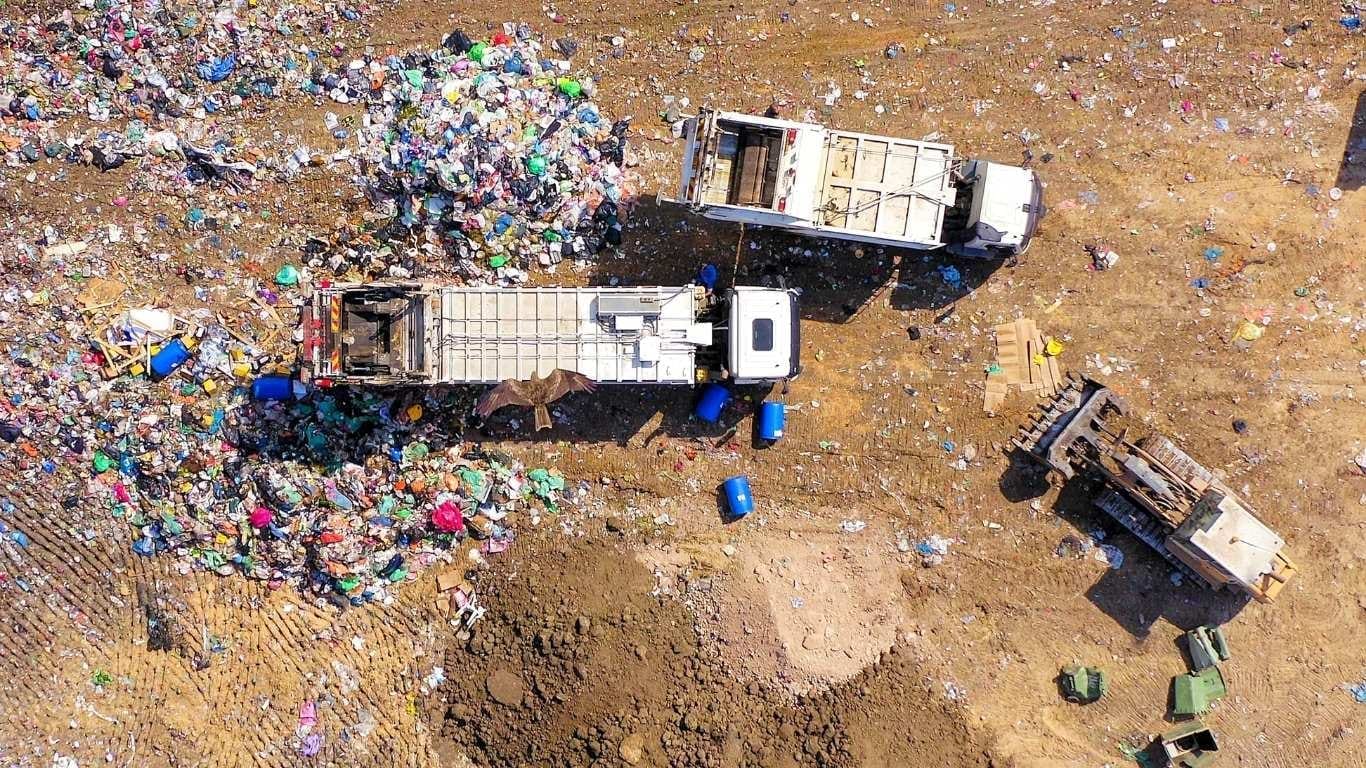

Municipal Waste Management
- The tipper chassis can be adapted for waste collection and disposal in urban and rural areas.

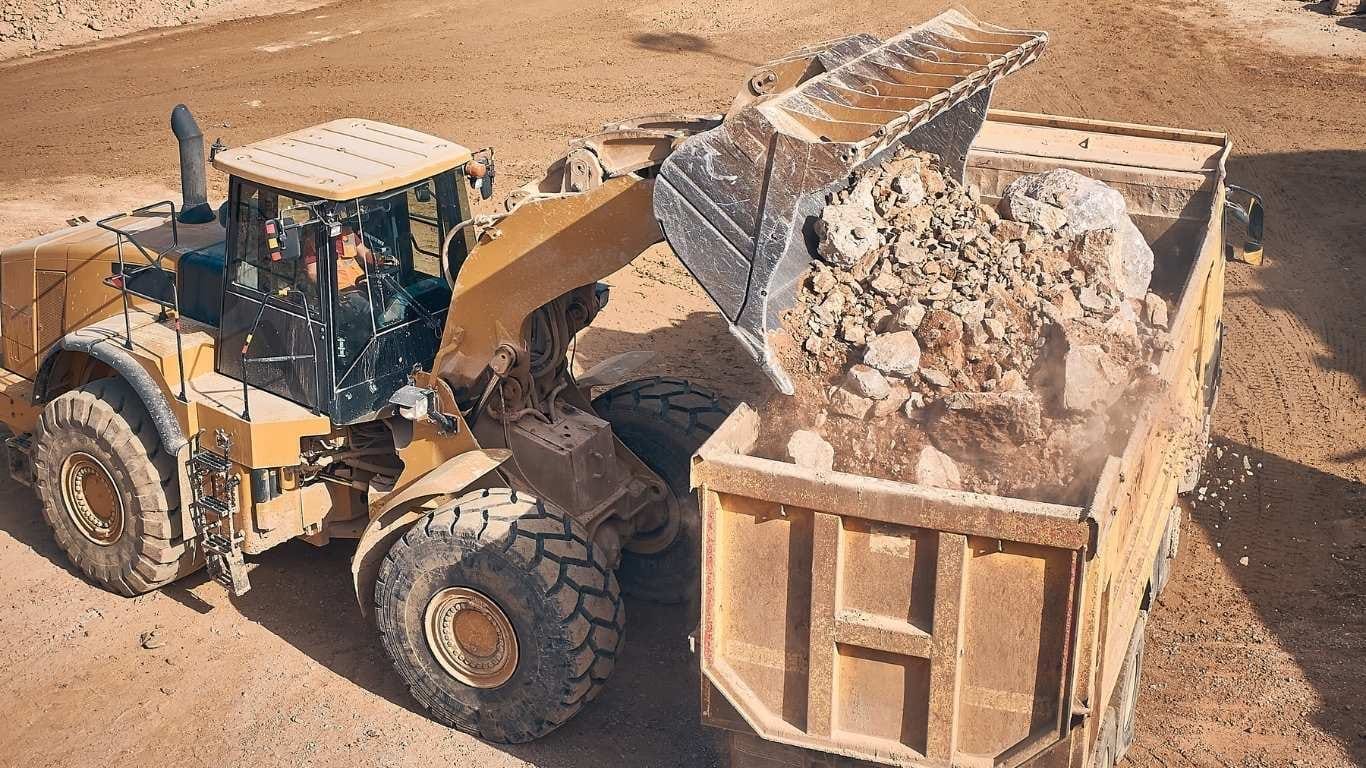

Agricultural Bulk Transport
- Suitable for moving large quantities of bulk goods like soil, manure, or produce.
Power to Deliver
- The future is moving to more efficient engines with low displacements and high torque. Our Isuzu intercooled turbo-diesel 6-cylinder powerplant delivers just that. The 280HP punches out 882Nm of torque featuring reliability and serious power.
Daily Inspection Made Easy
- The Isuzu FVZ34N heavy-duty 26t GVW 6x4 tipper offers an easy access front panel that houses the daily inspection and maintenance points that are protected via an interlock and can only be released from inside the cabin for safety.
Nunua Isuzu FVZ34N yako kwenye Fedha - tunaweza kukusaidia!
95% Financing Offer
Grow Your Business with Isuzu
Available on all Isuzu Trucks, Isuzu Buses, Isuzu Pickups and Isuzu SUVs.
- Up to 95% Financing
- Up to Ksh 1,000,000 Million working capital
- Up to 72 Months repayment period
- 1-1.5% Appraisal Fee
- Up to 60 Days Repayment Holiday
Body Types
Isuzu trucks offer unparalleled versatility, accommodating a wide range of body configurations to suit diverse needs. ACMG's expert team provides initial consultation services, alongside comprehensive information covering chassis modifications, power transmission systems, suspension and electrical systems, and the installation of specialized equipment.

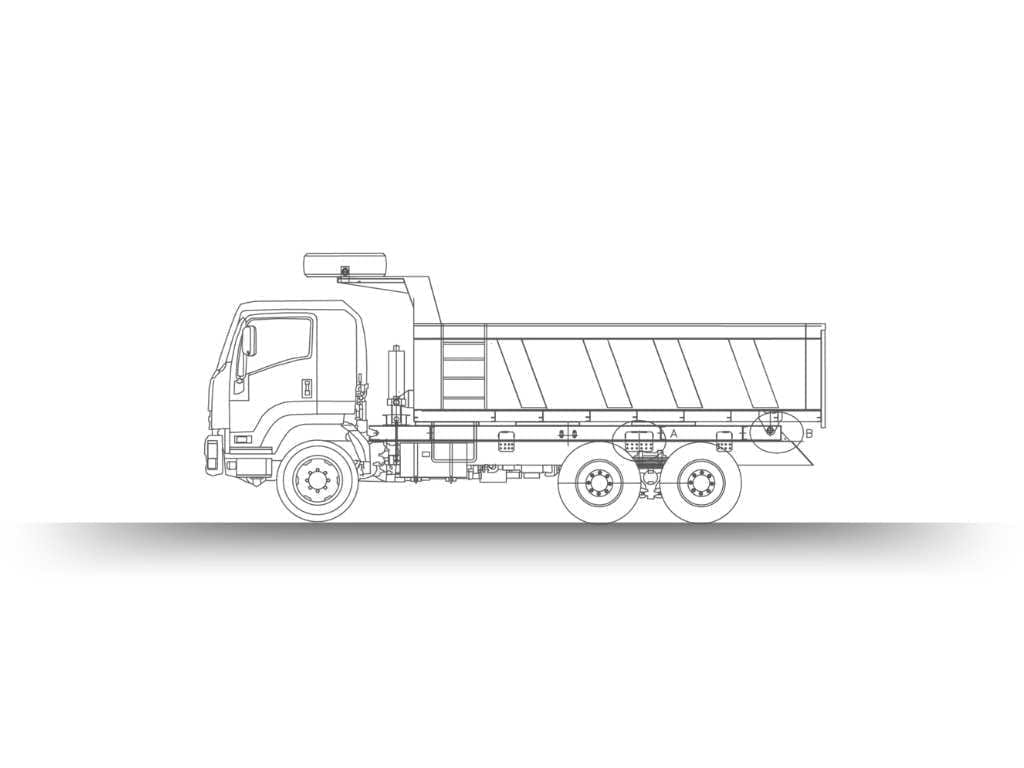

Tipper 12.5 CBM Body
Tipper 15.0 CBM Body
Box and Rock Body Designs
Technical Highlights
Equip your business with the Isuzu FVZ34N Tipper Chassis. Visit Africa Commercial Motor Group (ACMG) to explore financing options, customize the truck, and schedule a test drive today.
Engine Performance
- Powered by the 6HK1-TCS engine, generating 280 hp @ 2,400 rpm and 883 Nm torque @ 1,450 rpm.
- Turbocharged diesel engine with Euro IV compliance for reduced emissions.
Payload and Dimensions
- 26-ton GVW for heavy-duty operations.
- Equipped with a sturdy tipper body for efficient material unloading.
Durability and Stability
- Reinforced chassis for tough jobs.
- Features air-over-hydraulic brakes with dual circuits for safe operation.
Safety and Comfort
- Heavy-duty radiator and fuel water sedimentors for enhanced performance and longevity.
- Tubeless tires and semi-elliptical alloy steel leaf springs ensure durability on varying road conditions.
